An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras and motor controllers and they behave as if they were hardwired, but with an exceptionally great wireless range (up to 1,000 m/3,280').
Compatibility:
The ERM-2400 LCS module is compatible with equipment supporting LCS, EXT and LBUS protocols.
A pair of ERM-2400 LCS modules can replace a cabled connection between two devices, for example:
• WCU‑4 or SXU-1 and ALEXA Plus camera (LCS socket) • WCU‑4 or SXU-1 and ALEXA Mini camera (EXT socket) • WCU‑4 or SXU-1 and ALEXA Mini LF camera (EXT socket) • WCU‑4 or SXU-1 and UMC-4 (LCS socket) • Master Grip or OCU‑1 and cforce motor • cmotion cPRO hand unit and cforce motor • ARRI Wheels DRW-1 and Digital Encoder Head DEH-1
NOTE
The OCU‑1 override function is not supported with ERM-2400 LCS, because override is not possible in hardwired mode neither.
NOTE
The basic set is only supplied with adapter cables.
Recommended and required optional extension cables:
SRH FS CAN Bus Cable, 10 m/32.8' (K2.0019302) SRH FS CAN Bus Cable, 25 m/82' (K2.0019301) SRH FS CAN Bus Coupler, 0.2 m/0.65' (K2.0019300)
For SRH‑3, SRH‑360, TRINITY 2

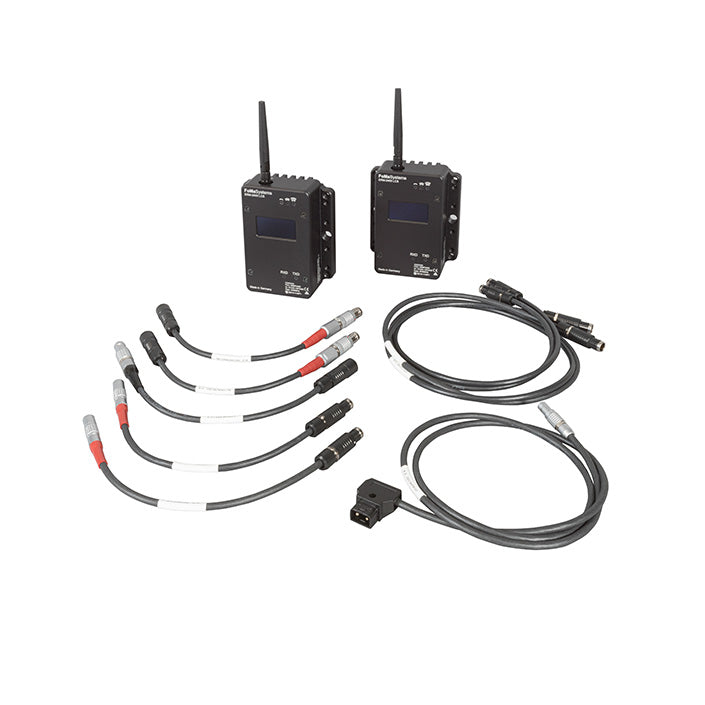

Parts of the set
- K2.0036900, ERM LCS to FS CAN Bus Adapter Cable, 0.2 m/0.65'
- K2.0036900, ERM LCS to FS CAN Bus Adapter Cable, 0.2 m/0.65'
- K2.0036903, ERM LBUS to FS CAN Bus Adapter Cable, 0.2 m/0.65'
- K2.0036903, ERM LBUS to FS CAN Bus Adapter Cable, 0.2 m/0.65'
- K2.0036901, ERM EXT. to FS CAN Bus Adapter Cable, 0.2 m/0.65'
- K2.0036902, ERM D-Tap Pwr Cable, 0B Lemo 2-pin to D-Tap, 1 m/3.2'
