ARRISKU: KK.0041793
Price:
$27,632.00
Stock:
Call us for stock check or lead time.
 More payment options

Need more Info? Check out our FAQ and our T's & C's.

Give us a chance to match or beat a better price!

Description

5th generation intelligent hand unit

The new ARRI Hi-5 is one of the most sophisticated hand unit on the market, providing reliable wireless camera and multi-axis lens control. Weatherproof and solidly built, it features an exceptional radio link range and unique, swappable radio modules for different territories and shooting challenges.



Hi-performance

  • Multi-axis lens control
  • Powerful radio signal cuts through interference
  • Up to 100 virtual radio channels
  • Split-second reconnection time
  • High-contrast display

Hi-versatility

  • Swappable radio modules for different regions/situations
  • Three user buttons for personalized functions
  • Full camera control (including third-party cameras)
  • Focus knob adjustable to operator preferences
  • Focusbug Cine RT support

Hi-speed

  • Fast and efficient new ECS ecosystem
  • Smart pre-marked focus rings detected automatically
  • Integrated NATO rail and multiple mounting points
  • ECS Sync App: easy software updates and lens file management
  • Customizable touchscreen user interface

Hi-reliability

  • Best rain, temperature, and dust protection on the market
  • Exceptionally strong materials and build quality
  • Intelligent, high-capacity batteries
  • A tool that can be trusted for heavy use over many years

Hi-tech

  • Hot-swap battery technology
  • Modular hardware and upgradeable software
  • Non-visual alerts via vibrating haptic feedback
  • Adaptable to future standards and networks

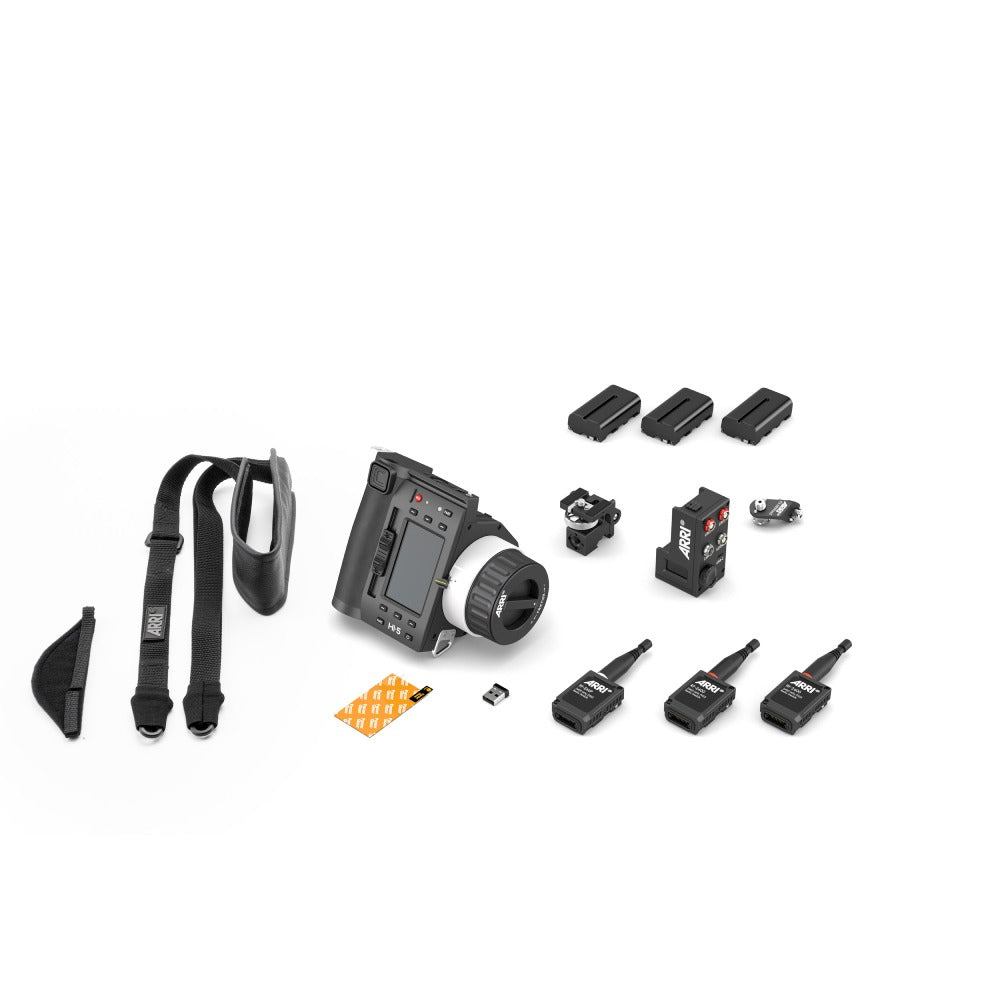

Hi‑5 hand unit with one white-coded RF-EMIP radio module, a set of RF-2400 radio modules, Radio Interface Adapter RIA‑1 and accessories. Compatible with ALEXA Mini LF, ALEXA LF,  ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and 3rd-party cameras.

Parts of the set

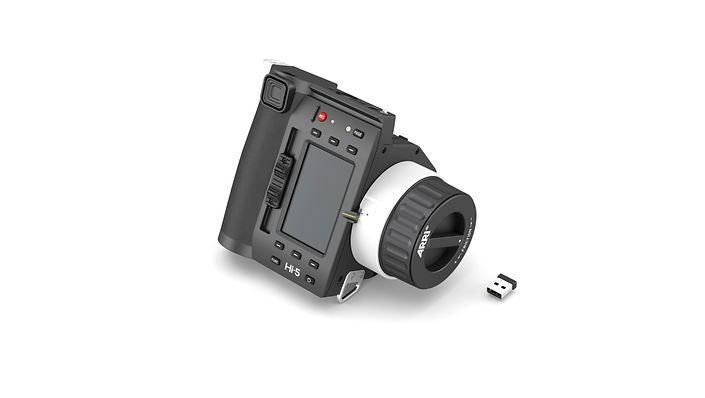

  • KK.0039973, Hi-5 Hand Unit Body Kit
  • K2.0033702, RF-EMIP Radio Module 2400 MHz DSSS

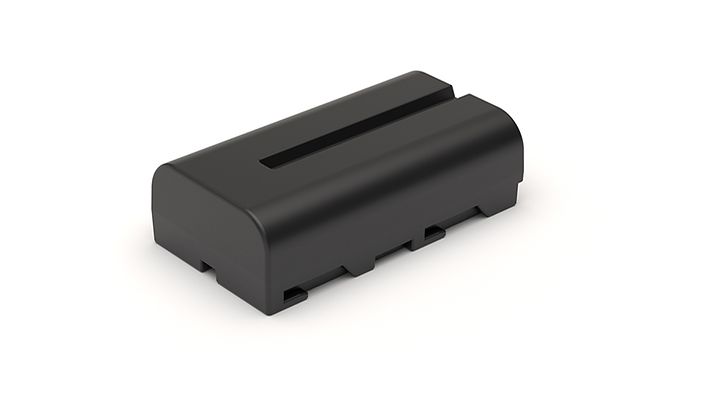

  • K2.0036022, Li-Ion Battery Pack LBP-3500
  • K2.0036022, Li-Ion Battery Pack LBP-3500
  • K2.0036022, Li-Ion Battery Pack LBP-3500

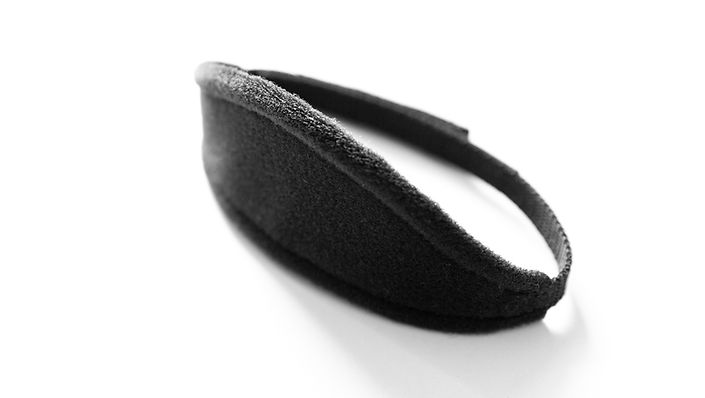

  • K2.0039958, Hi-5 Hand Strap

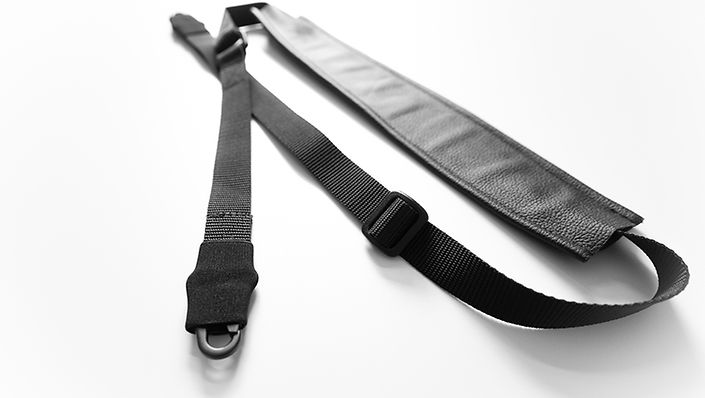

  • K2.0039959, Hi-5 Neck Strap

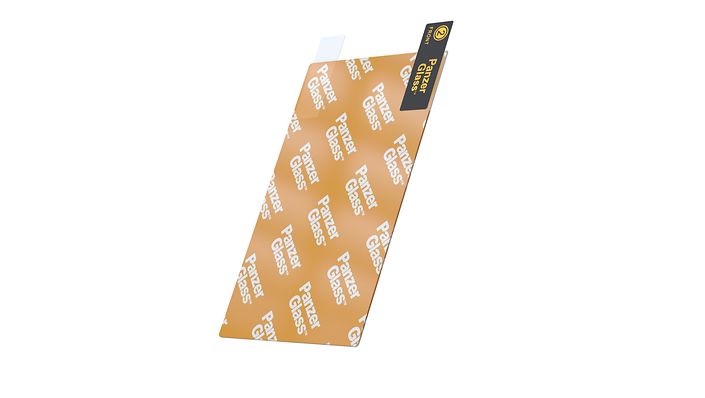

  • K2.0040015, Hi-5 PanzerGlass

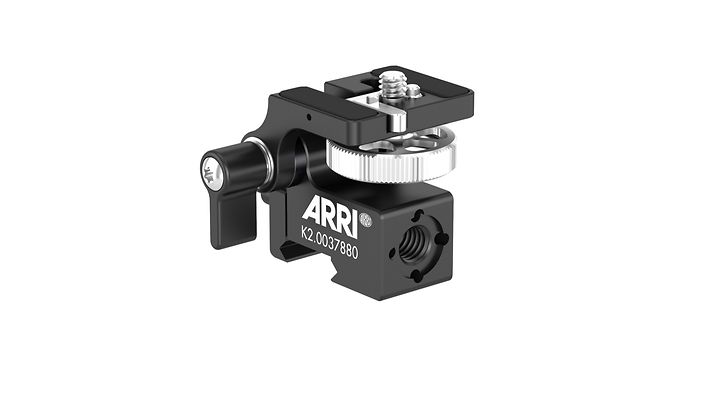

  • K2.0037880, Hi-5 Monitor Bracket

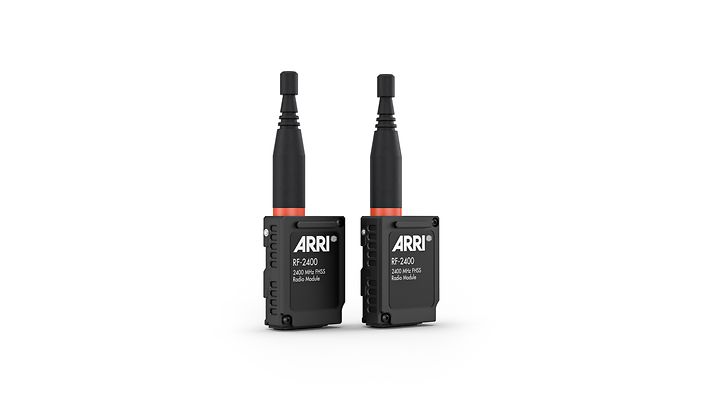

  • KK.0039984, RF-2400 Radio Module 2400 MHz FHSS Set (2x)

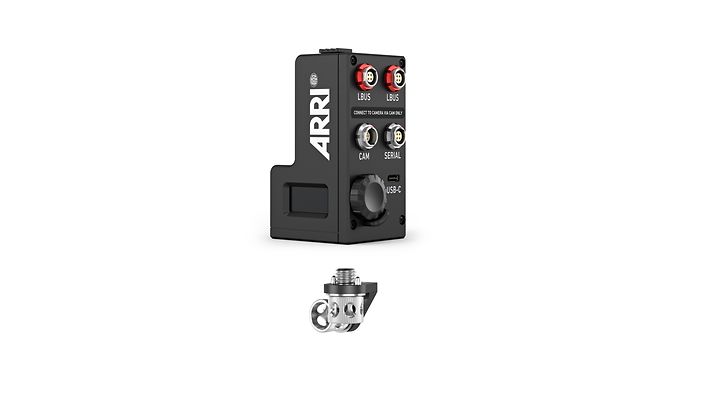

  • KK.0039980, Radio Interface Adapter RIA-1 Set

KK.0039973, Hi-5 Hand Unit Body Kit

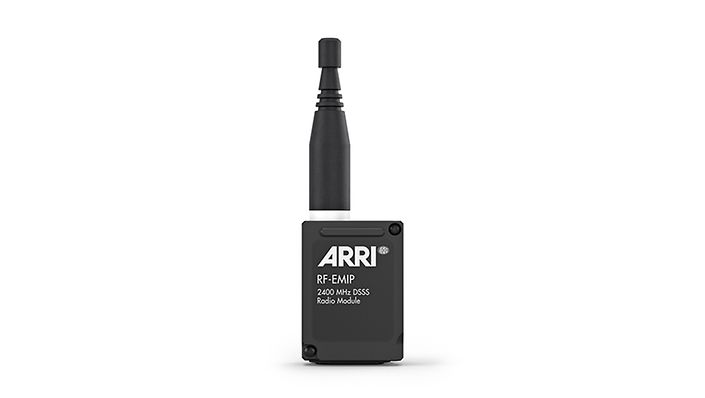

K2.0033702, RF-EMIP Radio Module 2400 MHz DSSS
K2.0036022, Li-Ion Battery Pack LBP-3500
K2.0036022, Li-Ion Battery Pack LBP-3500
K2.0036022, Li-Ion Battery Pack LBP-3500
K2.0039958, Hi-5 Hand Strap
K2.0039959, Hi-5 Neck Strap
K2.0040015, Hi-5 PanzerGlass
K2.0037880, Hi-5 Monitor Bracket
KK.0039984, RF-2400 Radio Module 2400 MHz FHSS Set (2x)
KK.0039980, Radio Interface Adapter RIA-1 Set

Focus Knob:

LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution

Iris Slider:

Fully sealed slider mechanism, 14 bit native encoder resolution

Force Pad:

Force sensitive joystick, x/y-direction

Display:

Transflective TFT-LCD display (readable in bright sunlight) 3.0" diagonal

Weight:

830 g / 29.30 oz (incl. Bluetooth dongle and Smart Focus Ring Blank)

Interfaces:

1x LBUS (4pin Lemo)

1x SERIAL (4pin Lemo)

1x Radio Module Interface

1x USB-A

1x USB-C

Power Supply:

ARRI LBP-3500 battery pack

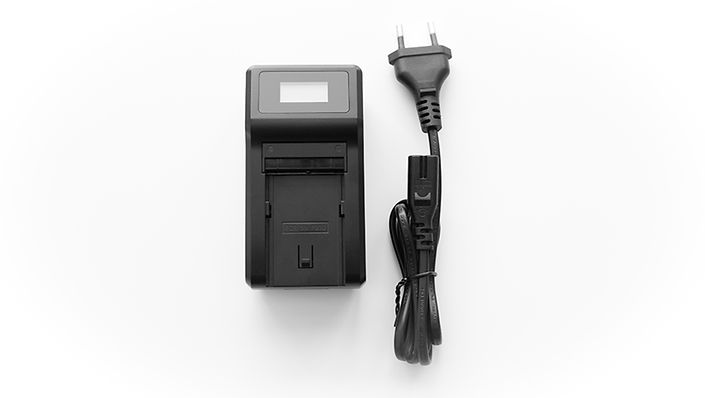

LBP Battery Charger

NP-F550 battery (Sony) or compatible batteries

Power via USB-C port through an external power supply

Power via LBUS interface

Supply Voltage:

LBUS interface: 10.5 V – 34.0 V

Battery: 7.4 V

Power Consumption:

Without radio module: 222 mA @ 7.4 V
With RF-EMIP radio module: typ. 270 mA @ 7.4 V

With RF-2400 radio module: typ. 370 mA @ 7.4V

With RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 V

With RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V

Operating Temperature:

-20°C to +50°C (-4°F to +122°F)
