Pre-configured LCUBE CUB-2 set to use with the ARRI Stabilized Remote Heads SRH‑3 and SRH‑360. Adapts servo-zoom lenses (Hirose 12 pin) to LCUBE (Lemo 4 pin). Enables the Focus / Zoom Set for Remote Control Panel (K0.0019595) to control focus, iris and zoom of a servo-zoom lens. Provides a switch to select between iris control from camera (auto-iris cia camera Hirose 12 pin interface) or the Focus / Zoom Set for Remote Control Panel (via LBUS).
The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15mm (K2.0006176).

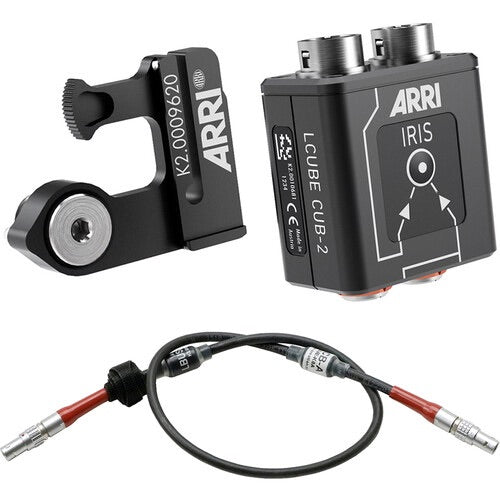

Parts of the set
- K2.0010681, LCUBE CUB-2
- K2.0009620, LCUBE Bracket
- K2.0022328, Cable LENS/ENG (12p) - Hi (12p) analog
- K2.0006751, Cable LBUS - LBUS (0.5m/1.5ft)
