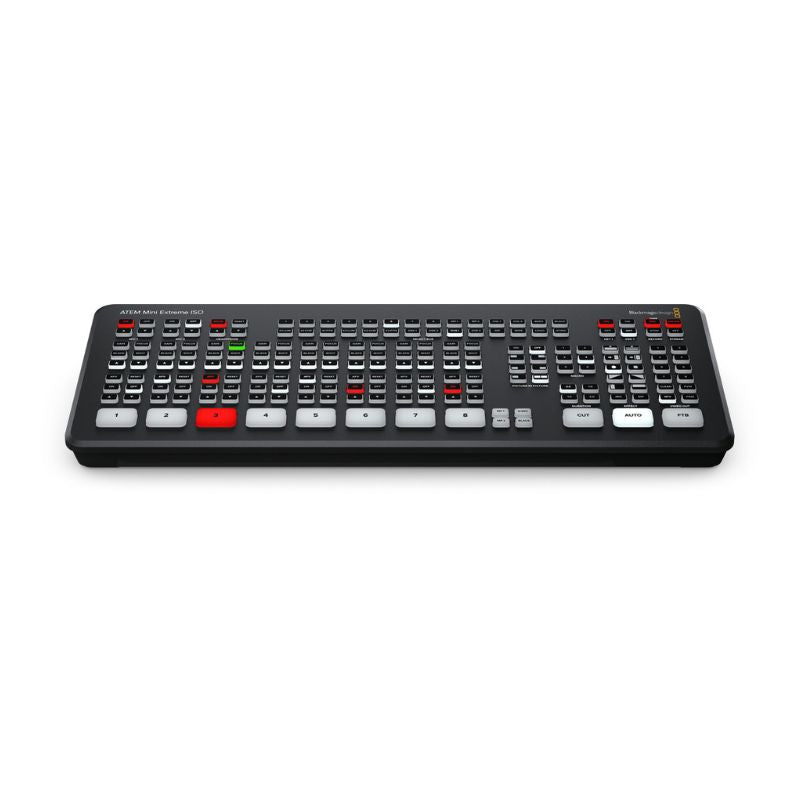

ATEM Mini Extreme ISO includes all the features of ATEM Mini Extreme, plus also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved allowing the project to be recreated and edited later!
Connections
Total Video Inputs
8
Total Outputs
4
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
1 x 3.5mm stereo mini jack.
Timecode Connection
None
HDMI Video Inputs
8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 8 HDMI inputs.
Frame Rate and Format Converters
On all 8 HDMI inputs.
HDMI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Product Specifics
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
Up to 4
Linear/Luma Keyers
Up to 4
Transition Keyer
DVE only.
Total Number of Layers
9
Pattern Generators
5
Color Generators
2
DVE With Borders and Drop Shadow
2
Interface
Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer
11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Unbalanced stereo
Analog Input Delay
Up to 8 frames
Input Impedance
1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming
ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording Video and Audio
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video Recording
8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording
10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.
Switching
Program switching recorded as a DaVinci Resolve project .drp file.
Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
