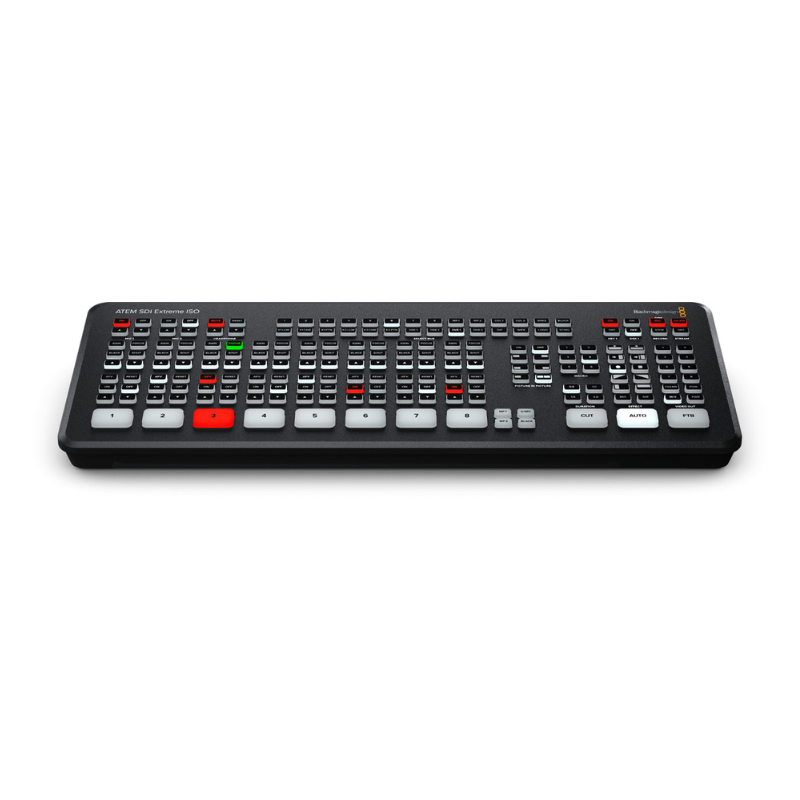

This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Total Video Inputs
8
Total Outputs
6
Total Aux Outputs
4
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
1 x 3.5mm stereo mini jack.
Timecode Connection
None
SDI Video Inputs
8 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 8 SDI inputs.
Frame Rate and Format Converters
On all 8 SDI inputs.
SDI Program Outputs
4
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
